45 Tph DHL Biomass Fired Boiler For Heating Industry

Case Introduction

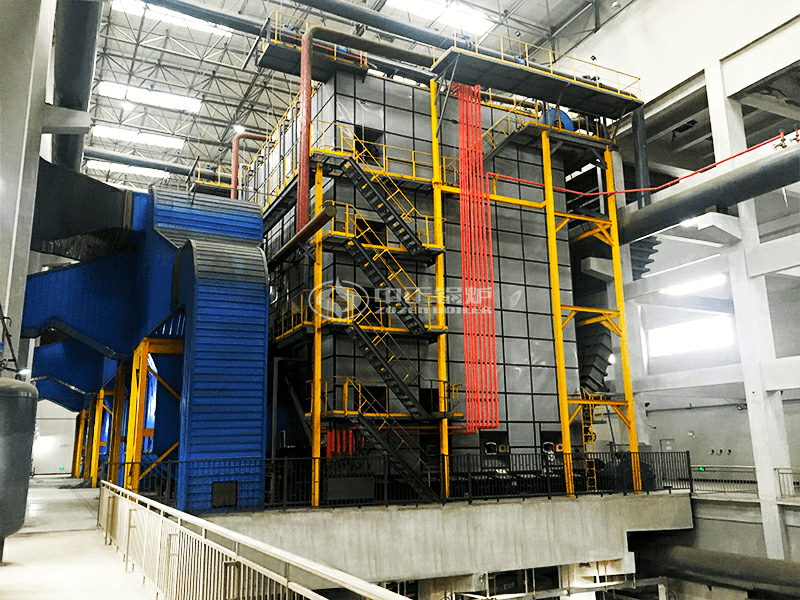

An energy company purchased a total of 6 biomass steam boilers from ZOZEN, which are 2 45t / h and 4 50t / h biomass chain grate boilers, which are biomass thermal energy boilers. The boiler mainly generates hot water or steam for heating and heating. , Small energy loss, strong heat energy supply capacity.

The biomass angle tube chain grate boiler produced by ZOZEN has an overall “n” layout. It consists of a Φ1600mm boiler tube, a hearth water wall, an external drop tube, a large-scale chain grate, two sets of economizers, and a tube-type air preheater. The boiler descending tube is arranged on the four corners of the boiler, not only as a water circulation channel, but also as a support frame for the boiler. This type of boiler with unheated descending tubes and self-supporting is called an angle tube boiler. When put into use when burning biomass fuel, strengthen the combustion, make the fuel fully burned, and improve the combustion efficiency.
